# Cluster Management

## 1. **Cluster Management**

The primary components of a cluster are nodes, storage, and applications. To effectively manage a configured cluster and ensure it operates according to plan, monitoring, alerts, and security settings are additionally required.

Let's explore the tools and content needed for cluster management one by one.

Navigate to \[Infrastructure] - \[Clusters] to access functionalities related to cluster management.

<figure><img src="https://4196990571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FL5As9l8R3RbLkQd6XsfL%2Fuploads%2Fa8OGzvTvFRb7s1Qxs6Ea%2Fimage.png?alt=media&#x26;token=369c396d-6a3f-4bc7-870a-c15233d47003" alt=""><figcaption><p>[Screen] Cluster Management</p></figcaption></figure>

## **Information and Functions on Cluster Management Screen**

> * Cluster Provider (Cloud Service Provider) type, Physical Location (Region)
> * Cluster Operation Status (Running/Stop)
> * Cluster Resource Allocation Type (Cluster/Service Map)
> * Number of Nodes Allocated to the Cluster
> * Allocated Resources of the Cluster
> * Number of GPU Nodes Allocated to the Cluster
> * Cluster Incident Alerts
> * \[Function] Cluster Registration
> * \[Function] Connect to Cluster Web Terminal
> * \[Function] Download External Connection Certificate for the Cluster

## **How to Register a Cluster?**

Cocktail Cloud can be implemented in on-premises environments (physical servers) and cloud services, and continuous integration is under development.

> * Amazon Web Service
> * Microsoft Azure
> * Google Cloud Platform
> * Naver Cloud Platform
> * VMware
> * Alibaba Cloud
> * Tencent Cloud
> * Rovius Cloud
> * On-Premise (physical servers)
> * Datacenter

For the detailed process of Cluster Registration (Creation), refer to the link provided.

{% embed url="<https://cocktailcloud.gitbook.io/cocktail-cloud-online-en/start/clustersregister>" %}
Cluster registration
{% endembed %}

## **How to Check the Resource Status Allocated to a Cluster?**

To check the resources and status of the registered cluster, navigate to the Cluster List screen.

Click on \[Infrastructure] - \[Clusters], and a list of accessible clusters will be displayed.

<figure><img src="https://4196990571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FL5As9l8R3RbLkQd6XsfL%2Fuploads%2FBJcByT550L3hcrBZMxl5%2Fimage.png?alt=media&#x26;token=46b7eda0-cb79-491f-b18f-f7a376b02024" alt=""><figcaption><p>[Screen] List and Resource Status of Accessible Clusters</p></figcaption></figure>

Information provided on the Cluster List screen includes

> * Cluster Name (User-defined)
> * Kubernetes Version
> * Status (Running, Stop)
> * Number of Nodes
> * Cluster Resource (CPU, Memory, Storage) Status
> * GPU Nodes (Number of GPU nodes configured in the cluster)
> * Alarms (Number of incidents occurred)

## 3.**How to Check Detailed Resource Status of Cluster Configuration?**

To modify the configured resources or registration information of a registered cluster, select \[Infrastructure] - \[Clusters], and move to the Registration Information tab.

### 3.1 **Cluster Configuration Overview**

> * Cloud Service Provider
> * Cloud Service Type
> * Region (Provider and server's regional/physical location)
> * Cluster Name (Name represented in Cocktail Cloud)
> * Kubernetes Version (Information about the Kubernetes version used in the cluster)
> * ID (Shared ID for the cluster, required for redirecting alarm messages)
> * Description (User description of the cluster)
> * Master Address (Kubernetes API address in the format "[https://host:port](https://cocktailcloud.gitbook.io/cocktail-cloud-online-en/platform/https:/host:port)")
> * Ingress Host (Host IP Address for Ingress method, Master IP or Load balancer IP)
> * Node Port Host Address (IP Service to be used in front of the port in the method of exposing services by attaching ports to nodes, Master IP or Load balancer IP)
> * Node Port Range (Range of ports to be used behind IP in the method of exposing services by attaching ports to nodes, recommended 30000\~32767)
> * Cluster CA Certification (Enter the value of the ca.crt file after moving to the /etc/kubernetes/pki path on the master server)
> * Client Certificate Data (Enter the value of the admin.crt file after moving to the /etc/kubernetes/pki path on the master server)
> * Client Key Data (Enter the value of the admin.key file after moving to the /etc/kubernetes/pki path on the master server)

### 3.2 **Monitoring Cluster Configuration Node Resources**

Move to the Node tab after navigating to \[Infrastructure] - \[Clusters]\
Select the specific node and move to the Monitoring tab.

Information provided includes resource usage status (CPU, Memory, Disk, Network), resource summary (Capacity, Availability, Request), and status (Event type, State, Recent occurrence time, Time elapsed since the last occurrence, Cause of occurrence, Message). Monitoring information for nodes can also be obtained from the Unified Monitoring menu, providing additional details.

{% embed url="<https://cocktailcloud.gitbook.io/cocktail-cloud-online-en/platform/monitoring>" %}
Intergrated Monitoring
{% endembed %}

### 3.3 **Creating Storage in the Cluster**

To allocate storage to the cluster, navigate to \[Infrastructure] - \[Clusters] - \[Storage Volume] and click the "+ Create" button to access the storage creation screen.

Choose the storage type for creation. Commonly, NFS and NFS Named types are available, and Azure services additionally provide Azure Disk and Azure File types.

Based on the selected type, detailed configurations for storage creation are possible. The configurable information (specifications) includes

> * **Name:** Storage name
> * **Description:** Description of storage usage
> * **Default Storage:** Option to use as the default storage
> * **Storage Plugin:** Plugin for storage
> * **Policy:** Policy for storage deletion (Retain or Delete)
> * **Total Capacity:** Total storage capacity in GB
> * **Parameters:** Storage parameter settings
> * **Mount Options:** Storage mount option settings
> * **Label:** Storage label settings
> * **Annotation:** Storage annotation settings

## 4. **Application Deployment Status**

Applications deployed in Cocktail Cloud are deployed at the workload level, and their status can be checked by selecting the corresponding workload in \[Workloads].

Details about the deployed application, including workload name, workload status, deployment type (Deployment, Daemon Set, Stateful Set, Job, Cron Job), number of instances, current resource usage (CPU, Memory), and service uptime (Age) after deployment, can be reviewed.

<figure><img src="https://4196990571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FL5As9l8R3RbLkQd6XsfL%2Fuploads%2FCdFRiN6YlWoGiiKV19xl%2Fimage.png?alt=media&#x26;token=a596c7f8-f0ab-4c5d-8ef3-9267570f16af" alt=""><figcaption><p>[Screen] Application Deployment Status Inquiry</p></figcaption></figure>

## 5. What does Alert mean in a cluster?

When alerts occur in the running workload (or instance), real-time status is provided through SMS (Slack, etc.), email, and the dashboard.

Navigate to \[Infrastructure] - \[Clusters] - \[Alerts], where unresolved alerts are displayed in the alert list. Each alert includes the alert name (status summary), severity (Critical, Warning), and occurrence timestamp.

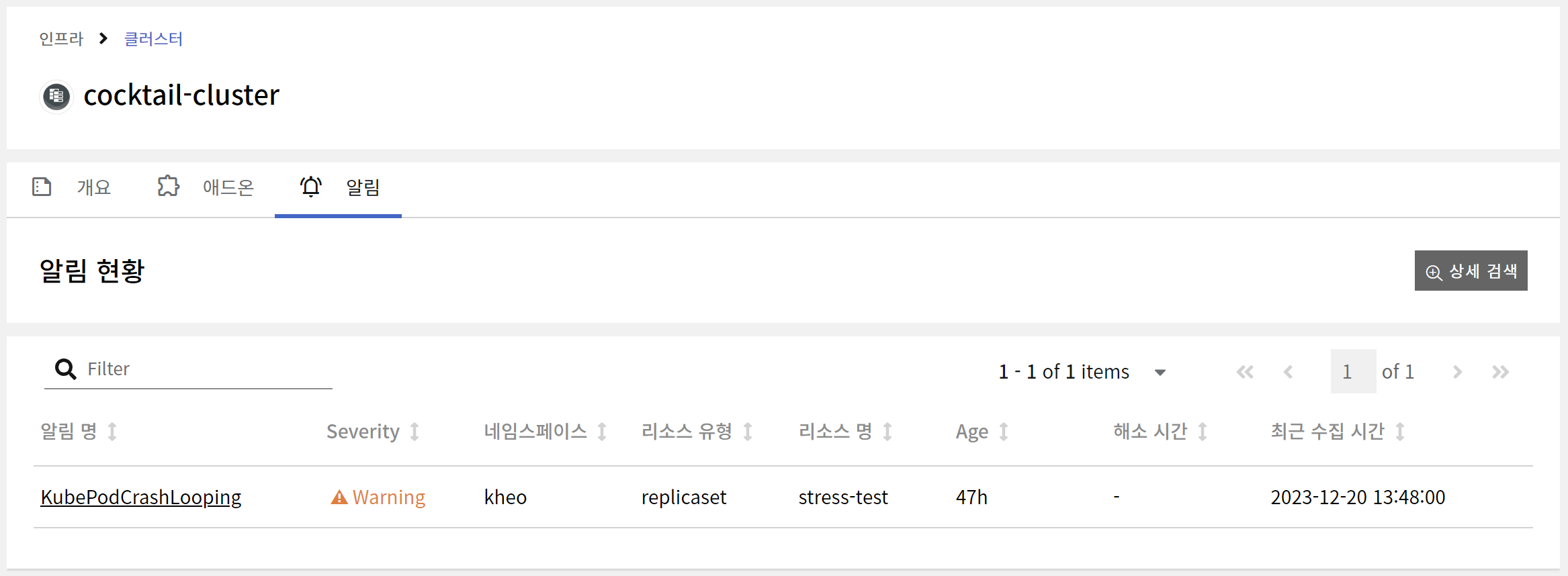

<figure><img src="https://4196990571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FL5As9l8R3RbLkQd6XsfL%2Fuploads%2Fgit-blob-39da4614713dc1f52cf17b92677d1bace7831ae1%2Fimage%20(20).png?alt=media" alt=""><figcaption><p>[Screen] Cluster Incident Alert List</p></figcaption></figure>

To view detailed information about an alert, select the alert name, and additional information will be provided through a popup.

<figure><img src="https://4196990571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FL5As9l8R3RbLkQd6XsfL%2Fuploads%2FVtVFtGGgv0eGRr4lmRAK%2F%EC%8A%A4%ED%81%AC%EB%A6%B0%EC%83%B7%202024-02-05%20175356.png?alt=media&#x26;token=d59b101c-e490-470a-a9c8-57c9c3c355ee" alt=""><figcaption></figcaption></figure>

## 6. What does the Addon do?

In Cocktail Cloud, add-ons, including Prometheus, a cluster management component, provide convenience for cluster operations. The add-on manager functionality enables registration, deletion, rollback, and redeployment of components. Users can add/modify metric targets for collecting/storing add-on metrics based on their requirements.

1. modifying the monitoring add-on
   1. Customize metric targets for status and resources like CPU/MEM.
   2. Set custom thresholds for metrics (min/max values).
   3. Trigger events and alerts based on specified metric values.
   4. Specify individual monitoring metrics based on add-on versions.
2. Deploy modified metrics
   1. Store modified metric information (Rule, Config) in ETCD.
   2. Provide add-on registration/deletion/rollback/redeployment based on modified user information.

## 7. **Storage Expansion in Configured Clusters**

If storage is increased due to insufficient space or planned tasks in a configured cluster, the existing pods may not immediately reflect the increased storage information. To utilize the increased storage properly, already deployed pods need to be restarted.

Navigate to \[Applications] - \[Service Map] - \[Workloads], select the workload list, and click the "+ Create" button to restart pods.

<figure><img src="https://4196990571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FL5As9l8R3RbLkQd6XsfL%2Fuploads%2FDnKOoLeRfPLlDAsBXOb7%2Fimage.png?alt=media&#x26;token=82a897b8-363c-4f52-b1a3-ebf881d6e16c" alt=""><figcaption><p>[Screen] Configuration After Increasing Cluster Storage</p></figcaption></figure>
